NEW
Geolution Tour Design | Bosch CX Motor | Electronic Rohloff E14 hub gear

GT1 EBOXX WRT

    from
    10.499,00 €
    incl. 19% VAT , plus shipping costs (Komplettbike)
    • Available immediately
SIZE
COLOUR
EXPLORER-KIT

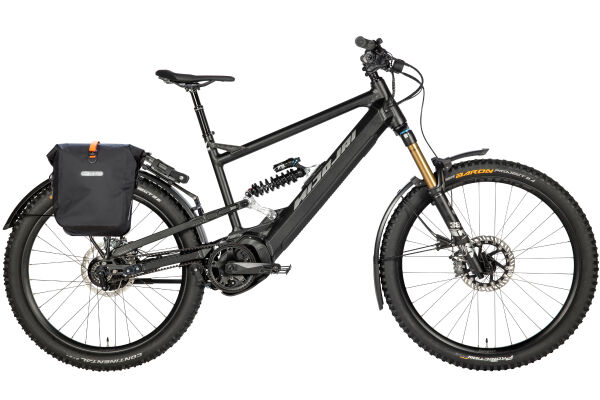

ORTLIEB BAGS
TOP TUBE BATTERY
Financing  Easy assembly  5 year warranty  Testride Technical Data  Custom Gallery

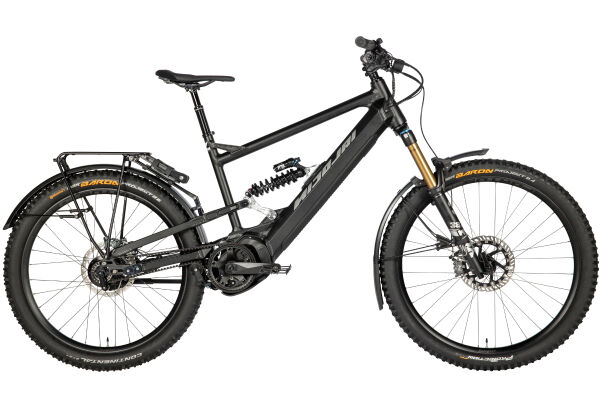

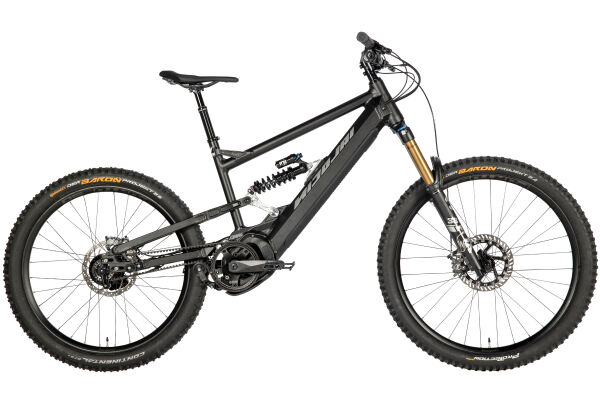

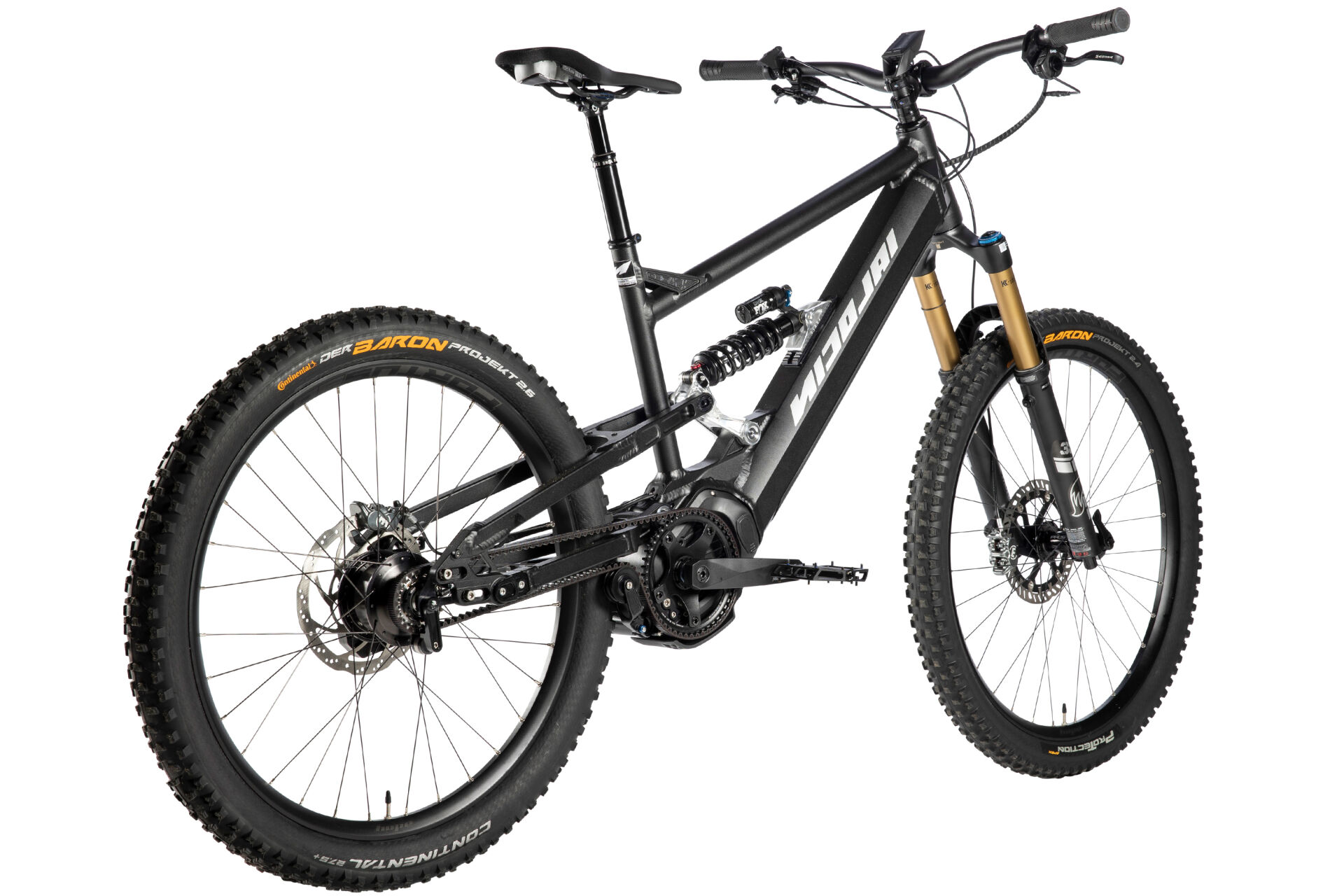

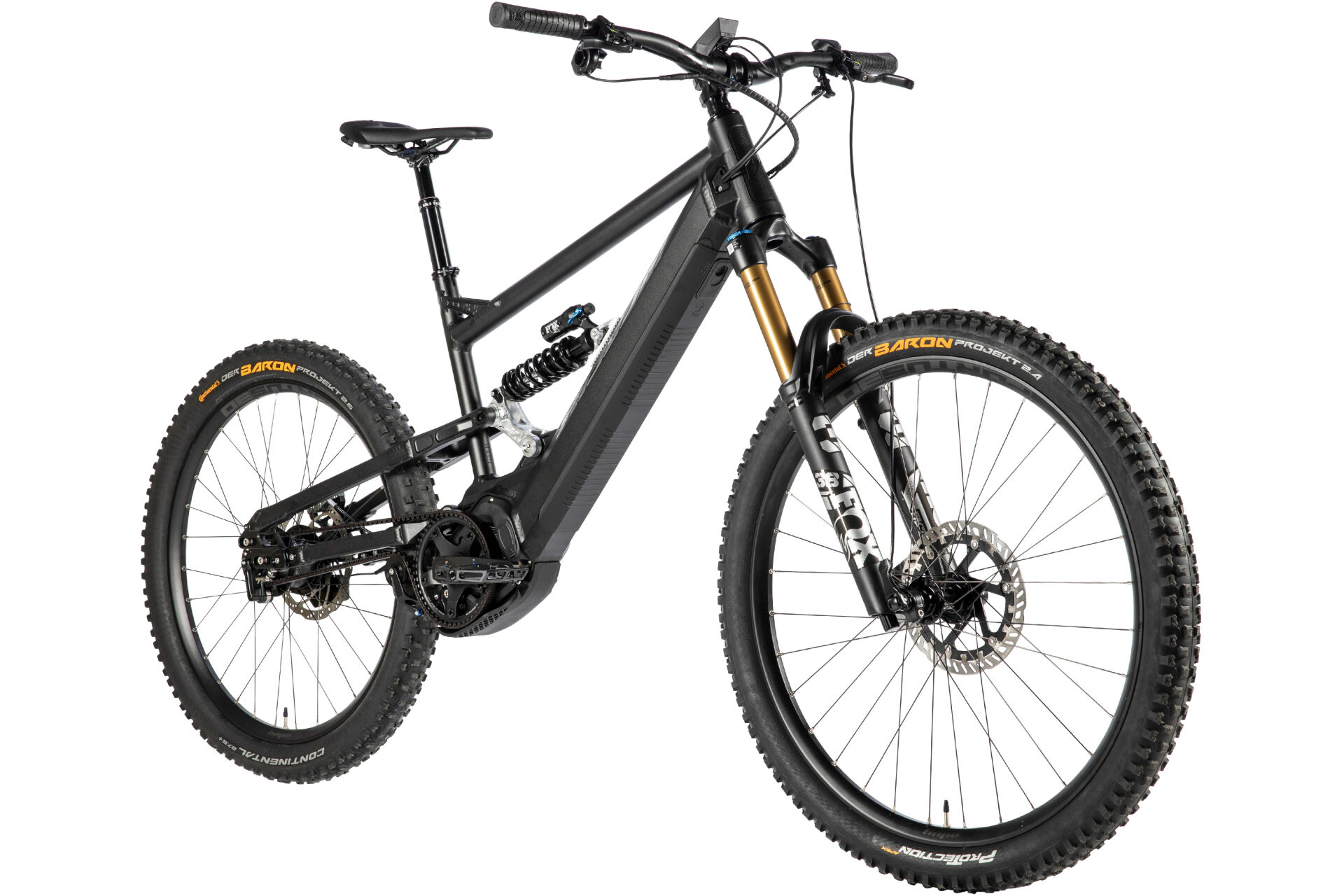

GT1 EBOXX WRT

comfortable, smart, low-maintenance

The GT1 EBOXX WRT has a strong enduro DNA and is at home in any terrain. Its raised front, ensures an upright, relaxed riding position, which increases its versatility and gives it excellent touring capability, while the Rohloff gear and Gates Carbon Drive drivetrain guarantee maximum reliability and reduce service requirements to a minimum. The electronically shifted E14 variant of the Rohloff hub is deployed here in combination with the E-Shift compatible BES2 version of the Bosch Performance Line CX motor and a 625 Wh battery. The high-performance Fox suspension not only ensures comfort, it also copes perfectly with technical trails and challenging terrain. Optimized for the optional Explorer Kit, the GT1 EBOXX WRT is the ideal all-rounder for adventurers and commuters looking for a reliable jack-of-all-trades that is ready for any challenge.

Geolution Tour

The roots of the Geolution concept lie in enduro racing, and even if the general trend in frame geometries is gradually approaching this concept, Geolution can still be seen as a radical design in which the performance thought has top priority. But not every biker puts the emphasis here too or strives for top results in enduro contests.

SUSPENSION AND KINEMATICS

Alongside the geometry, the suspension of a mountain bike, in particular the design of the suspended rear end, is a decisive factor for riding fun and performance. We want to combine with our EBOXX models a competitive performance and maximum fun on the trail with a high efficiency when pedaling and therefore build our rear ends based on the Horst-Link design. Horst-Link is the name given to the pivot that is located at the end of the chainstay in front of the rear axle and counteracts the shortening of the wheelbase during compression.

BOSCH PERFORMANCE LINE CX

SMART SYSTEM

The Bosch Performance Line CX is a powerful, reliable drive unit with a peak power of 600 W and an assist of up to 340%. Its maximum torque of 85 Nm ensures great acceleration even at low cadence, for example after tight turns or when getting started on a climb. For fast sprints, however, the motor also supports at high cadence. Its dynamic power output ensures intuitive handling and a unique riding experience. In adaptive eMTB mode, technical sections can be confidently ridden through and obstacles such as steps, rocks or thick roots can be easily overcome by one controlled pedal push with the help of the Extended Boost feature.

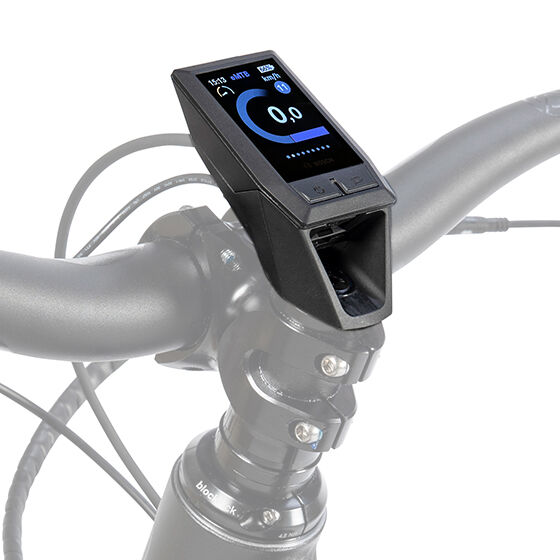

Bosch Kiox

DISPLAY

The BOSCH Kiox on-board computer serves as the EBOXX models' control center. The scratch-resistant, large color display is perfectly readable in all lighting conditions thanks to its adaptive brightness control. In addition to riding mode display, speed, battery charge, distance and range, the G1 EBOXX WRT with Rohloff E14 electronic shifting also displays the gear selected at any given time. Other functions of the BOSCH Kiox are aimed particularly at sports riders: The rider's power in watts can be displayed, as well as heart rate when a cardio belt is used. The control of functions such as riding mode selection or changing menu items is done via the LED Remote at the left handlebar grip. The EBOXX can also be used without the Kiox 300 displays solely using the LED Remote, which purists and hardcore enduro fans in particular will appreciate.

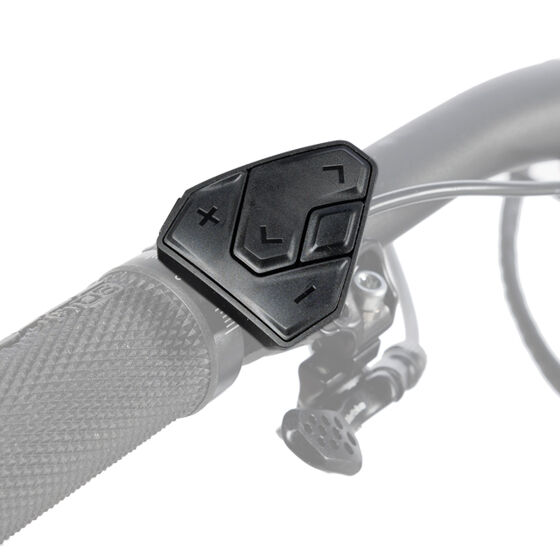

BOSCH Remote

The Bosch Remote allows for intuitive operation of the EBOXX bike and provides both haptic feedback through the detents of its buttons. The optimized ergonomics of the control unit ensures easy and safe handling. The remote can also be used to activate a push assist at the touch of a button, making it easier to push the EBOXX up stairs and climbs.

GATES CARBON DRIVE

CLEAN. SMOOTH. DURABLE.

The Gates Carbon Drive is a carbon fiber reinforced drive belt that transfert the power efficiently, smoothly and play-free to the rear wheel without stretching. A center guide prevents it from coming off. Unlike a chain, the Gates Carbon Drive requires neither lubrication nor special care. Dirt and mud can simply be rinsed off with water. The service life of a Carbon Drive can exceed that of a conventional chain-and-sprocket drive many times over.

System connectivity

As a BOSCH partner, we have been working closely with the world's leading developer of e-bike drives for many years and are very familiar with their technology. That's why we don't talk about installing the BOSCH drive, but about integration. This means taking into account a wide range of technical aspects regarding the drive itself, its secondary properties, and the entire periphery.

SUSPENSION

FOX

To get the maximum potential from a suspension system, after the frame design, the choice of the right suspension components is crucial. On all models, we use modified custom shocks as needed, whose shim stacks ( components within the shock that regulate oil flow and damping resistance) are individually matched to the riding requirements and kinematics designs of our bikes.

EXPLORER KIT

For this frame we offer 5 sizes from S to XXL, suitable for body heights of 1.55 and 2.10. A chart of body and frame sizes can be found in the Tech Sheets attachment to this model. Building a perfectly fitting frame means more than just scaling its initial shape. Here we take into account various factors in terms of body proportions and rider weights, for example adapted tube cross-sections, modified riding angles and low standover heights for S-sizes as well as frame reinforcements that take into account the heavier weight and greater body strength of XXL riders. For fine-tuning the geometry, saddle position, stem height, or handlebar width and angle can be adjusted.

5 Frame sizes

Flexible Production

For this frame we offer 5 sizes from S to XXL, suitable for body heights of 1.55 and 2.10. A chart of body and frame sizes can be found in the Tech Sheets attachment to this model. Building a perfectly fitting frame means more than just scaling its initial shape. Here we take into account various factors in terms of body proportions and rider weights, for example adapted tube cross-sections, modified riding angles and low standover heights for S-sizes as well as frame reinforcements that take into account the heavier weight and greater body strength of XXL riders. For fine-tuning the geometry, saddle position, stem height, or handlebar width and angle can be adjusted.

Powder coating and anodizing

Extralove

In addition to the basic configuration, in which we offer the frame without color in brushed aluminum look as Factory Raw with black anodized, mounted milled parts, there is the option of individual color choice. In our in-house powder coating facility, we process over 50 colors, each of which can be applied in high-gloss or silk matte.

SLIDE AFE

The Slide AFE named dropouts of the EBOXX are optimized for mounting the Rohloff hub with an axle dimension of 135 x 10 mm and a bolted axle. This ensures a particularly stable rear wheel and a higher torsional stiffness in the rear end and thus for a direct, loss-free power delivery and a precise, on-track riding performance. A Slide AFE is mounted in horizontal grooves and fixed in position by an adjustment bolt to match the specified chainstay length of the bike.

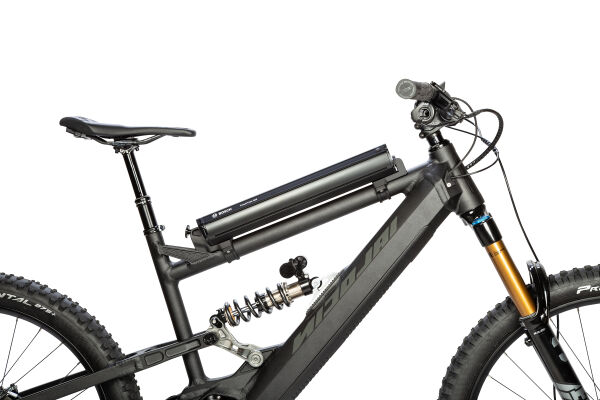

2nd battery mount

For full day rides and multiple summits, a second battery with a capacity of 625 Wh can be carried onboard, for which we optionally offer a safe quick-release mount on the top tube. Unlike eBikes with two battery slots, where usually both batteries must always be inserted, the EBOXX gives you the choice between a significantly increased range or a much lighter bike.

7020 Aluminum

All of NICOLAI frames are made of 7020-T6 aircraft aluminum and we are convinced that this alloy is the superior material for the construction of mountain bikes. Compared to the 6061-T6 (AlMg1SiCu) alloy normally used in bicycle construction, 7020-T6 (AlZn4.5Mg1) has about 30% higher tensile strength and about 20% higher elastic limit. And where carbon frames can spontaneously break and collapse in the event of an overload, NICOLAI bikes are calculated and designed to deform in a defined area of the frame in the event of an overload, significantly reducing the risk of serious crashes and injuries. A NICOLAI aluminum frame is designed to withstand many years even under tough competition conditions.

Topology optimisation

When designing turned and milled parts, we use FEM software (Finite Element Method), which allows us to simulate the loads that will occur in later use in order to determine the optimum shape (topology) of these components. Critical structural areas become visible this way and can be strengthened by adding material, whereas material can be saved at less stressed areas. This way we can produce highly complex parts and assemblies for our frames that combine maximum durability with minimum weight.

NICOLAI Welding

Made in Germany

We weld our frames manually using the TIG process. Our welders are specially trained and with many years of experience. For each model and frame size, a precise welding fixture is built, called a frame gauge. Here, the CNC-cut tube sets with all turned and milled parts of a frame that are to be welded are precisely put together and fastened. The frame parts are first tack-welded at exactly specified points and in a defined sequence and then, in order to minimize distortion and stresses, welded in several runs.

Warranty and spare parts supply

We provide a 5-year warranty on all frame models against breakage and material failure, even in racing use or when jumping. The prerequisite is that the respective models are used within the scope of their designated purpose and have been equipped only with the components for which there is an approval. In addition, we guarantee a spare parts supply for all models over a period of at least 10 years. Since we manufacture all parts of our frames in-house and on our own machines, it is even possible to reproduce spare parts beyond the 10-year period in some cases.

BIKEBOX

We have developed an elaborate reusable bike box for our mail-order shipping. In it, the new NICOLAI bike arrives protected in a wooden frame and guaranteed safe at the customer and is ready for use after a few simple steps. The same box is reused when the bike is returned to us for repair or service. All shipping protections of the bike box such as pads, lashing straps, brackets and screw connections are also reusable.
