ION G19

    2.949,00 €
    incl. 19% VAT , plus shipping costs (Rahmen)
    • Available immediately
KONFIGURIEREN
 Easy assembly  5 year warranty  Testride Technical Data  Custom Gallery

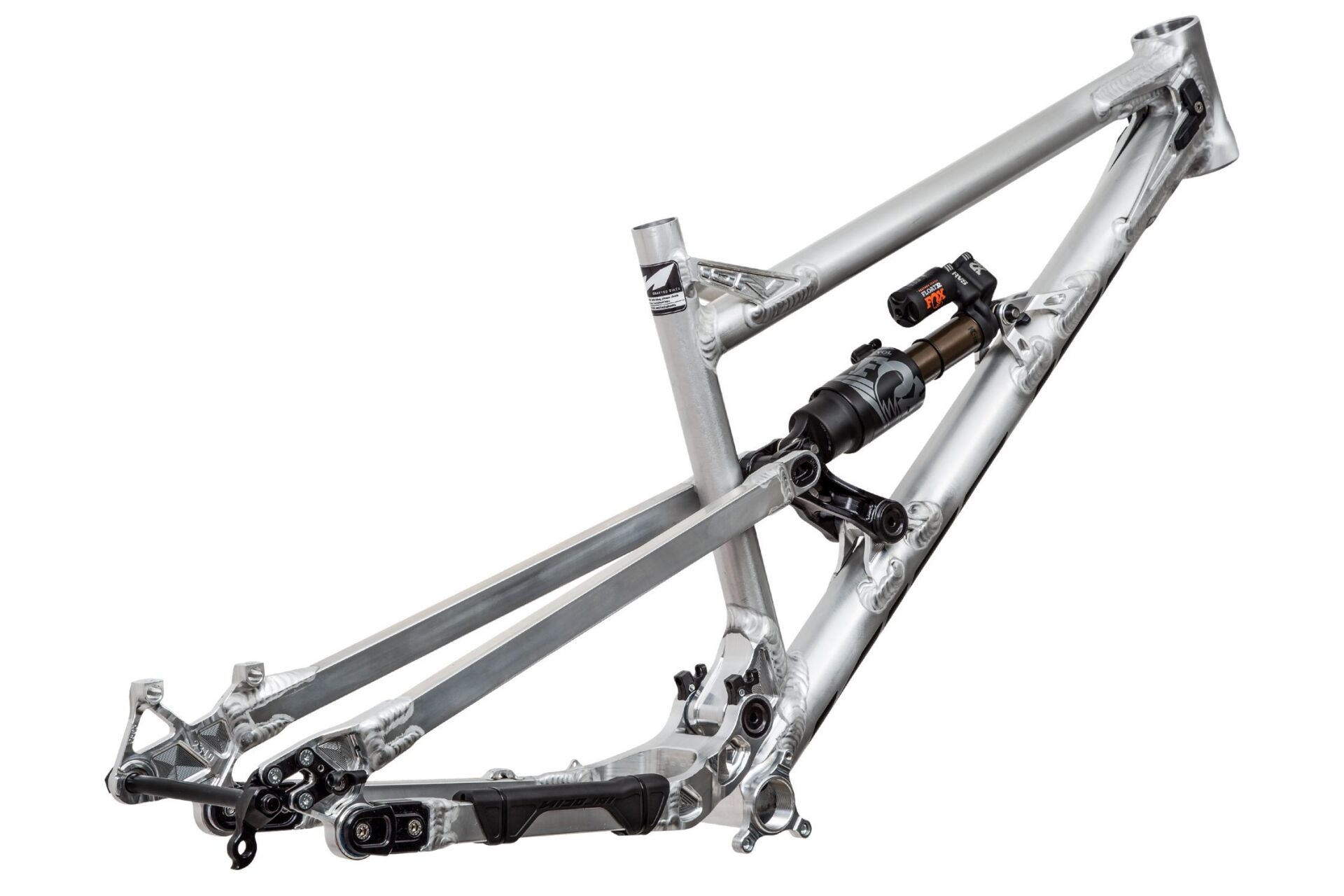

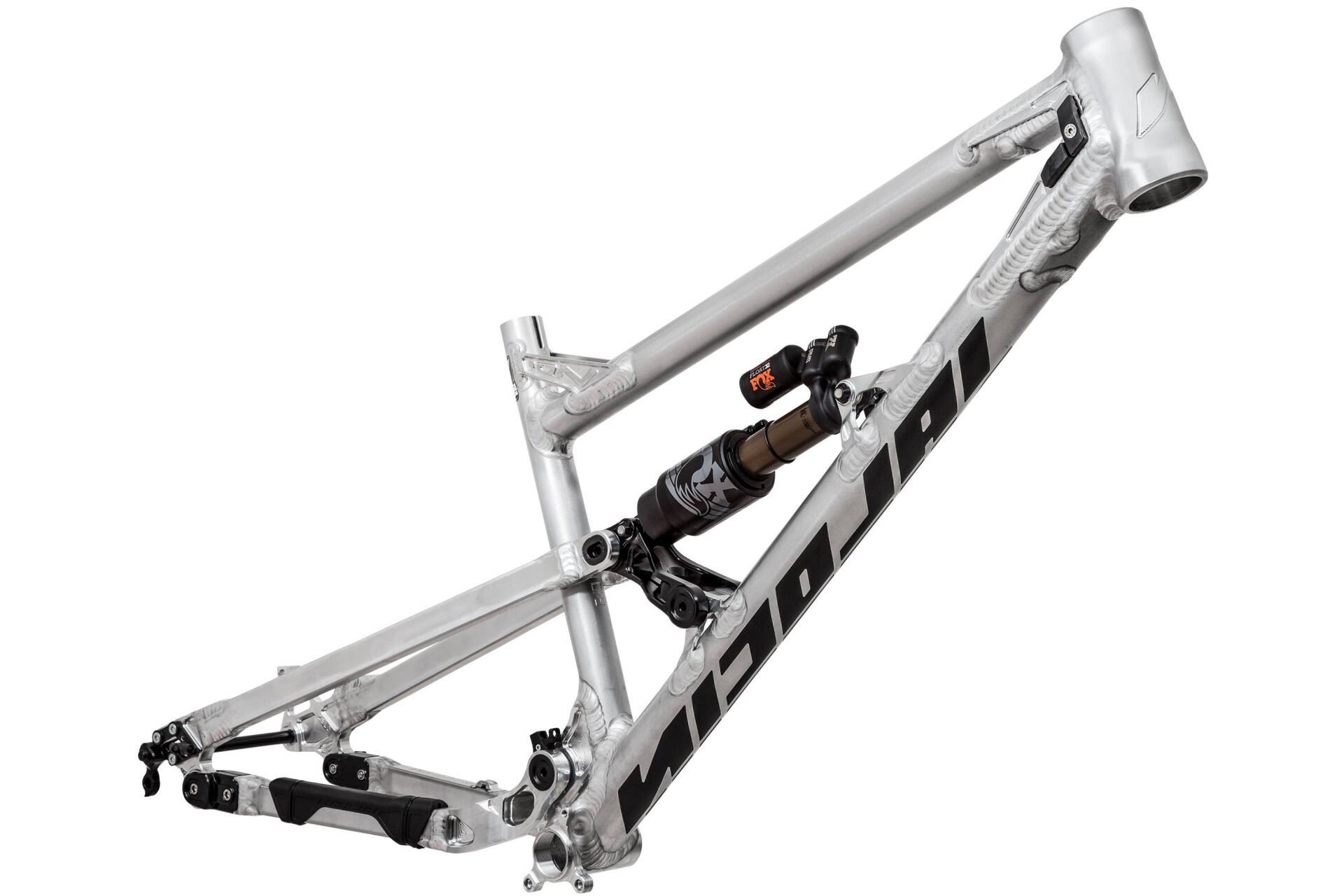

ION G19

RACING GUN

The ION G19 is a purebred downhill bike. The GEOLUTION geometry combined with the best suspension components will enable you to reduce your competition times.

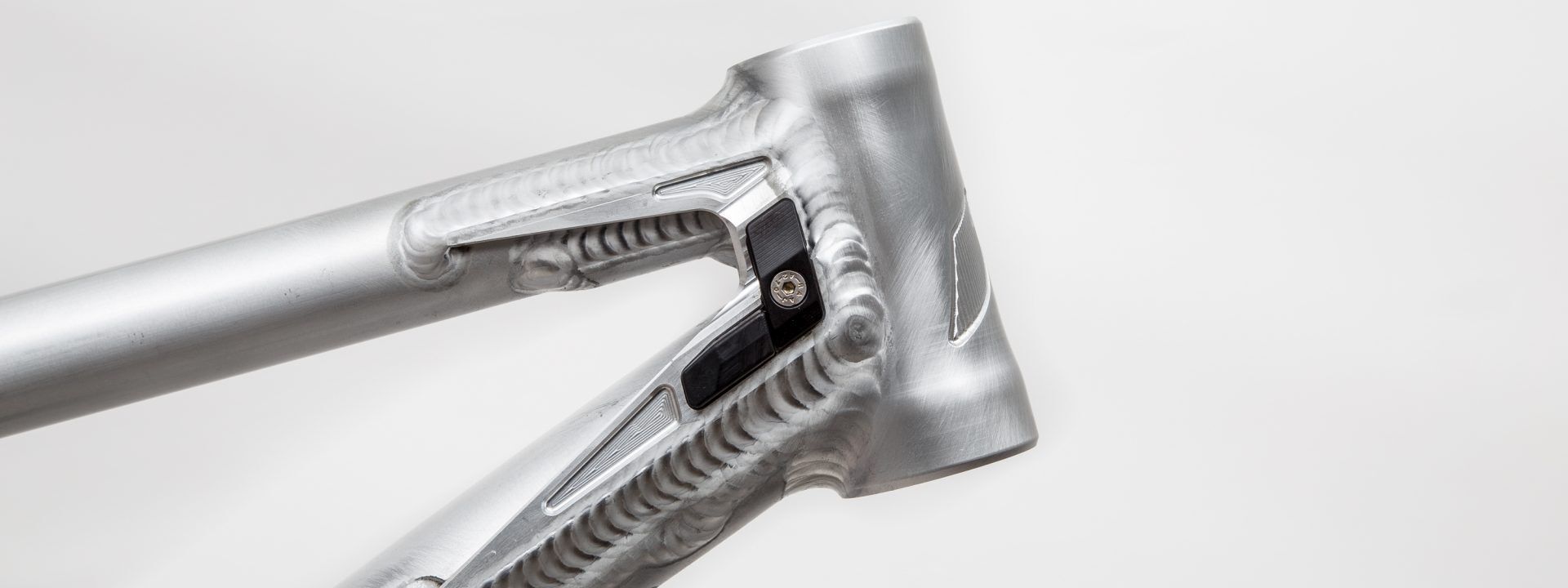

WELDING TECHNOLOGY

CRAFTSMANSHIP AND ENGINEERING IN PERFECTION

We weld all of our frames by hand using the TIG (Tungsten Inert Gas) method. Our specially trained welders have many years of experience, our lead welder has worked in-house for over 20 years. For each model and frame size we build a precise welding structure called the frame jig. In this jig, the CNC-cut tube sets are precisely assembled and fixed in place with all turned and milled parts of the frame to be welded. The frame components are first tacked together with individual spot welds at precise points in a defined sequence, and then, to minimize distortion and stresses, welded in several passes.

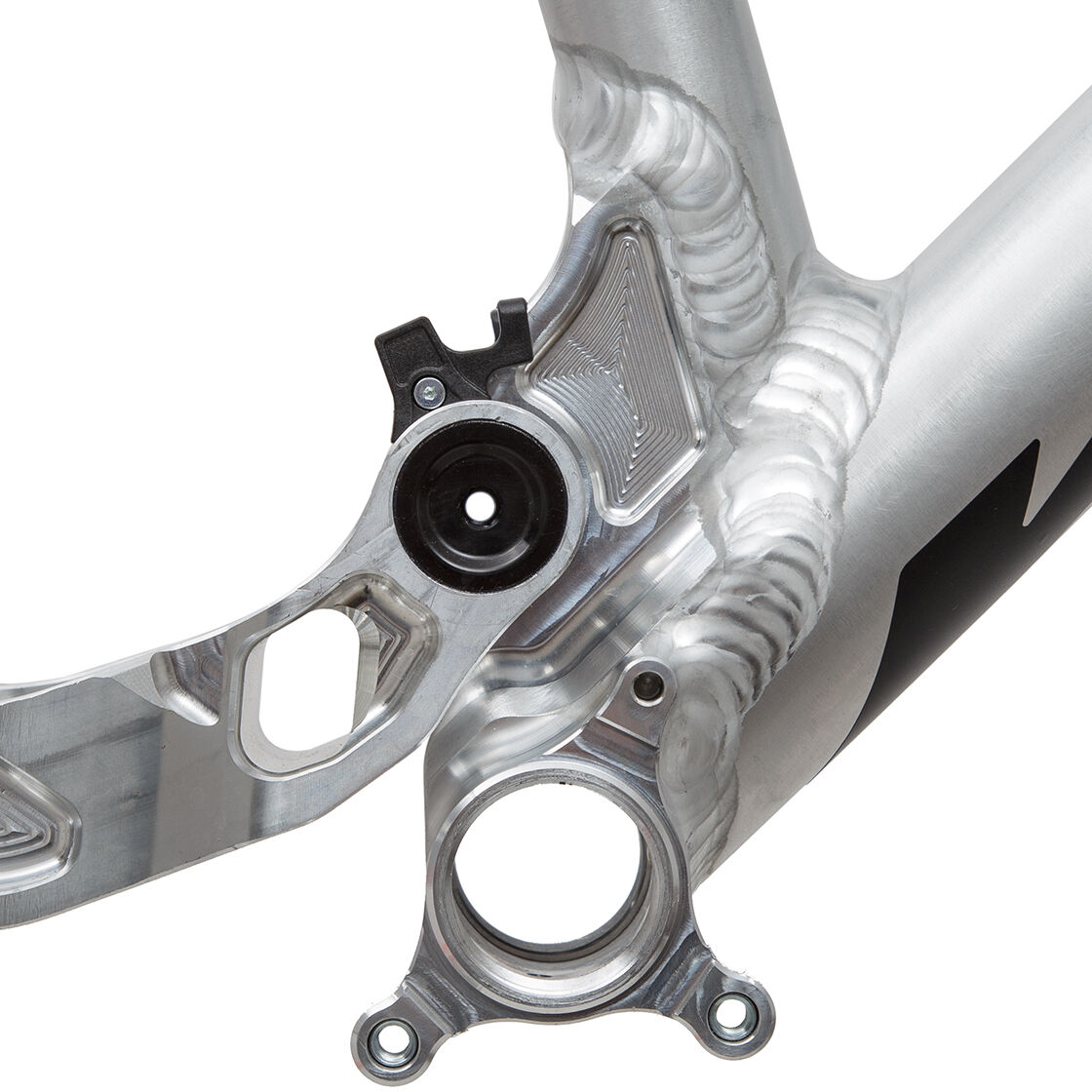

INSERT BEARINGS

FULL SUSPENSION BEARING TECHNOLOGY

The rear triangle of a full-suspension bike is subjected to very high dynamic loads during riding. The pivot points are the focal points where forces are transmitted between frame components. The full-ball, double-sealed ball bearings installed on our frames not only achieve top marks for power transmission, but also a particularly low breakaway torque, which ensures a sensitive and smooth chassis and suspension response. At the same time, they offer the best possible sealing against dirt and moisture for a long service life and extended maintenance intervals.

TOPOLOGY OPTIMIZATION

When designing turned and CNC milled parts, we use FEM software (Finite Element Method), which can be used to simulate the loads that will occur on the trail in order to determine the optimum shape (topology) of these components. Critical areas of the design become visible in this way and can be strengthened by adding material, or weight can be saved by removing material from low stress areas. In this way we can produce highly complex parts and assemblies for our frames that combine maximum durability with minimum weight.

COLOR SELECTION

EXTRA LOVE

Thanks to our own powder coating facility, local anodisers, and our in-house production line, every NICOLAI frame can be customized to meet your individual needs. We process over 50 powder coat colors applied in high-gloss or semi-gloss finish, as well as fades and our classic ‘camo’ options. Customers can even choose a separate color for each welded frame component. Our frames can also be anodized with a glass-peened and durable black, bronze or titanium finish. For turned or milled components such as rocker linkages, bearing covers, or cable guides, we offer an extended ‘Extra Love’ range of anodized colors that allow color matching with your favorite branded components. We also offer an uncoated aluminum finish as "factory raw". To finish, add your choice of decal style, location, size and color to guarantee a unique, personalized and truly custom bike.

rado

Rear Aligning Dropout

Our RADO dropouts guarantee perfect alignment between the front and rear wheels of the bike. Finalising the toe and camber of the rear wheel and fixing the RADO in an exact position means that every NICOLAI is always one hundred percent straight. Despite precise preparatory work, construction methods and the utmost care, any aluminum frame is subject to a certain amount of heat distortion during the welding process. Of course, after welding, each frame is straightened, precisely measured and the final alignment ensured. Instead of forcing the frame into alignment, the RADO can be precisely fixed in place with guided grooves and the choice of 5 different camber heights.

After locating the correct toe position along the guided grooves, the frame is drilled and the RADO is pinned by a dowel. The chosen RADO for each frame has the correct camber dimension milled into the RADO. This means that the original alignment is retained when the dropout needs replacing.

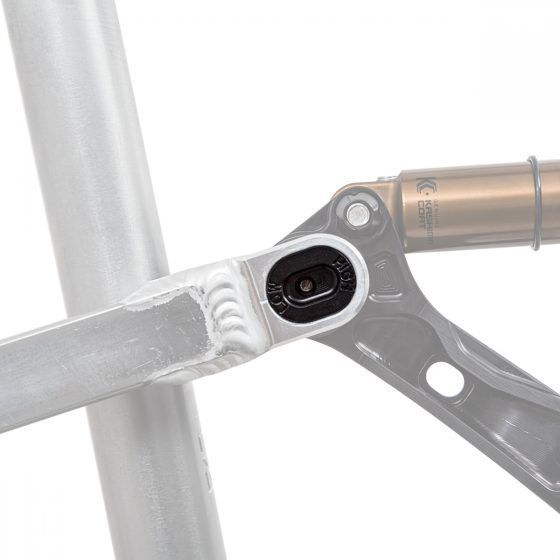

ET KEY

THE KEY FOR VARIABLE WHEEL SIZES, GEOMETRIES AND SHOCK LENGHTS

The ET Key is an adjustable aluminum insert that allows you to vary the active length of the compression strut/seatstay at its connection to the rocker link. A simple 180º rotation of the ET Key can be changed in a few simple steps to adjust the geometry of the rear triangle. Depending on the model, the ET Key has different functions and effects on shock lengths, suspension travel and frame geometry. The ION G16 ET Key ensures consistent geometry when using the two optional shock dimensions 216 x 63mm or 222 x 70mm. On the ION G15 and the ION G19, on the other hand, the ET Key allows geometry adjustment while maintaining the same shock length. In the Low position, the head angle becomes slacker and the bottom bracket lower. In the High position, you achieve a steeper head angle and a higher bottom bracket.

TAILOR MADE

With our regular frame sizes, we cover a very wide range of body sizes and can offer the vast majority of bikers a perfectly fitting bike. However, there are also people who cannot find their optimal geometry within the range of standard sizes and adjustment options because, for example, they are particularly short, have exceptionally long legs or have a medical restriction. Our complete in-house production means we can offer frames specifically to measure and anything up to custom electric-assist tandems, for example.

MUTATORS

ONE FRAME, TWO WHEEL SIZES

We developed our Mutators to allow combinations of 27.5”, 29” and fine-tune frame geometry. Mutators are interchangeable connectors found at the pivot points on our full-suspension frames. Compression strut Mutators allow the frame to be adapted to 27.5” or 29” wheel sizes using different lengths to raise or lower the height of the frame. They are also used for adjusting the headtube angle and bottom bracket height in fine increments. Secondly, our swingarm Mutators tune chainstay length in terms of center of gravity, handling, maneuverability and smoothness.

A swingarm Mutator consists of two half-shells that are securely mounted and connected to the swingarm via a tapered rectangular fit eliminating play and torsion. Simultaneously, the Mutators integrate extra bearing seals and replace the bearing axle. Mutators are not only a clever way to customize your perfect ride, they also reduce the number of components at the pivot points, increase bearing life, minimize wear. If the worst does come to the worst? Mutators allows quick and easy replacement of component parts instead of large frame structures.

MANUFACTURING QUALITY

The manufacturing quality itself is not yet an added value for a customer. The following two added values result from production quality:

Durability & precise driving characteristics

Only if the welds are welded deep into the root and have no notches, a bike frame can withstand the impacts from the ground for many years without breaking. Precise riding characteristics are achieved when the rear wheel is precisely straight to the front wheel and even a layman notices that an oblique bike rides strangely (but usually he thinks it’s because of his riding ability).

#GEOLUTION

Geolution is a unique geometry concept that we developed in cooperation with Chris Porter from the English brand GEOMETRON. It is based on the idea that a longer wheelbase, a slacker steering angle and a steeper seat angle make the bike faster, smoother, easier to climb, and overall, safer to ride. Climbing characteristics are improved because the steep seat angle and long front end position the rider centrally preventing front wheel lift on steep climbs. The long wheelbase and a slack steering angle, on the other hand, allow for high downhill and cornering speeds and prevent an ‘over the bars’ feeling on steep downhills. The upright seating position and the centralised center of gravity ensure optimum load distribution and balance between the front wheel and rear wheel. This increases rider control in dynamic riding situations and improves the bike's overall handling.

WARRANTY AND SPARE PARTS

All NICOLAI frame models come with a 5-year warranty against breakage and material failure, even when used in extreme conditions like racing or jumping. The prerequisites are that the respective models are used within the scope of their designated purpose and have only been equipped with approved components. In addition, we guarantee supply of spare parts for all models for at least 10 years. Since we manufacture all frame components ourselves on our own machines, it is even possible to reproduce sold-out spare parts beyond the 10-year period in certain cases.
