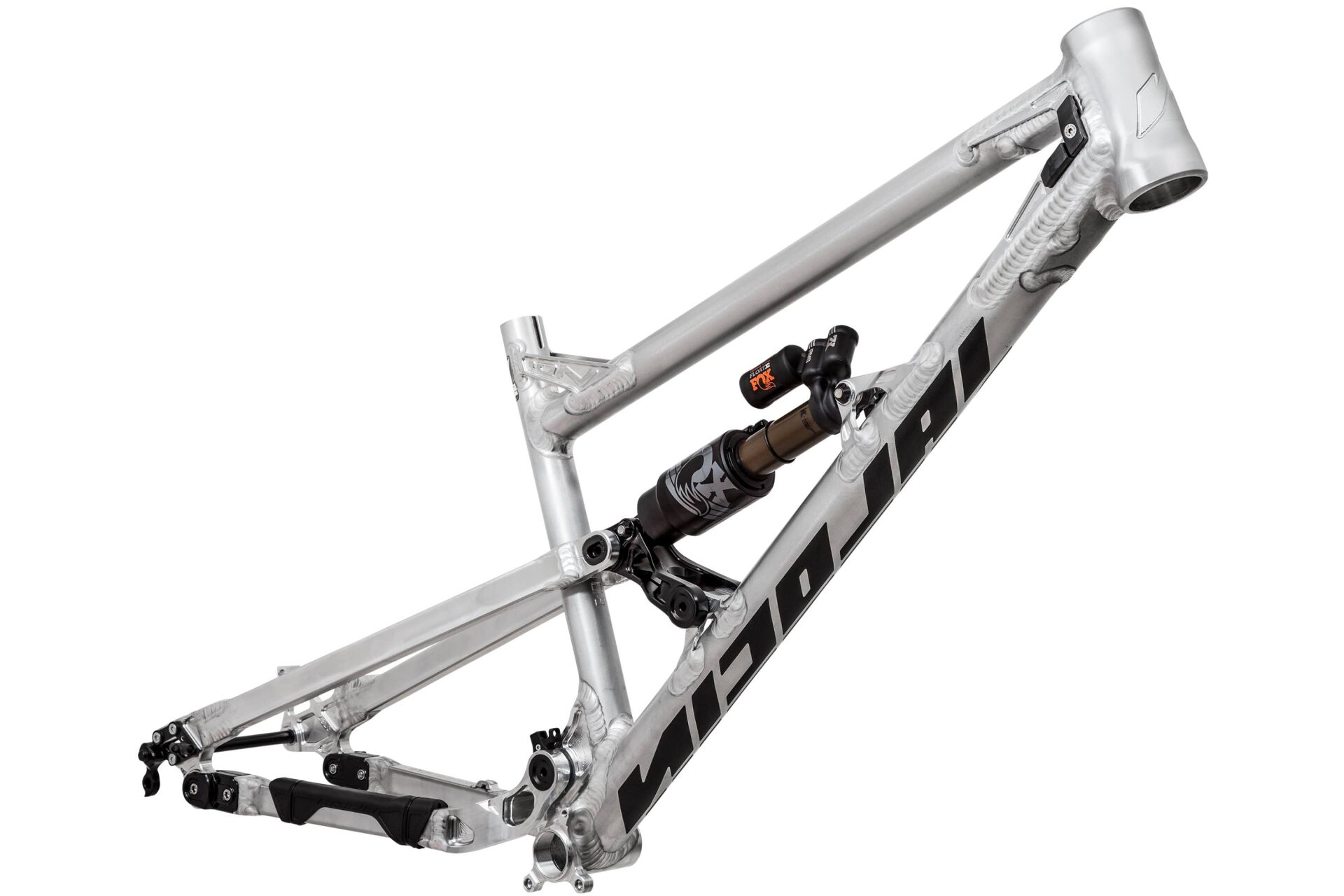

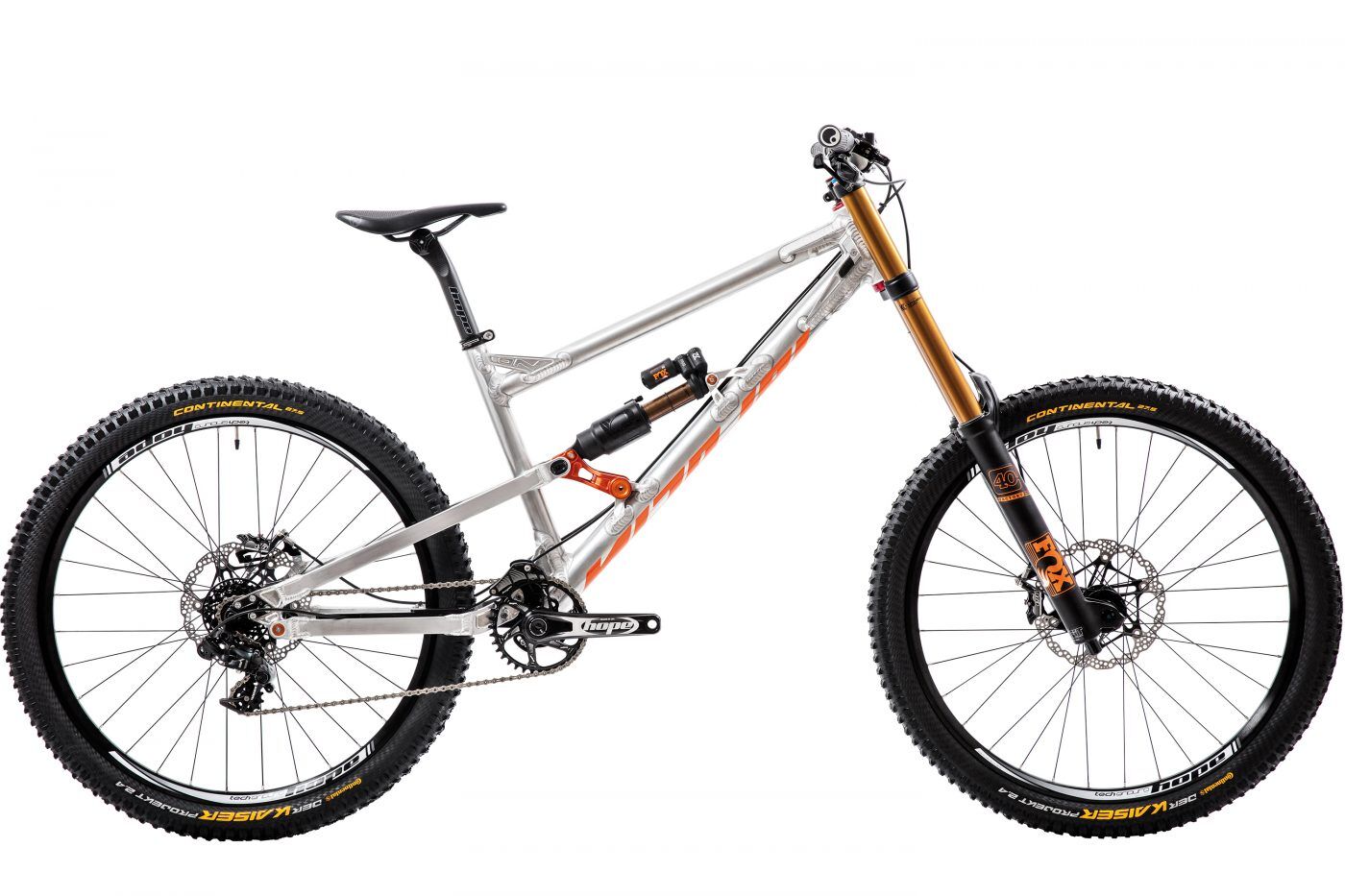

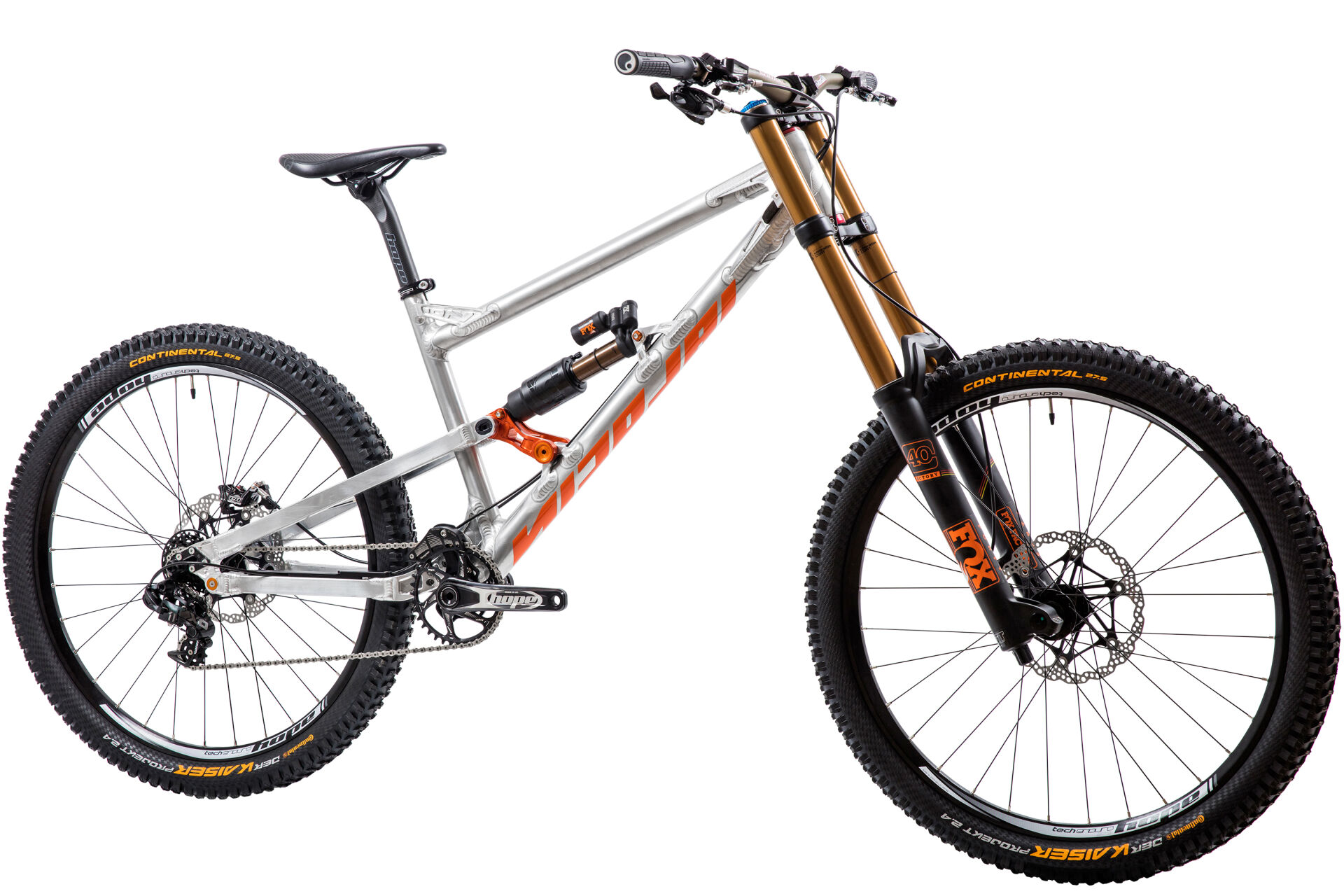

ION G19

    5.877,00 €
    incl. 19% VAT , plus shipping costs (Komplettbike)
    • Available immediately
KONFIGURIEREN
Financing  Easy assembly  5 year warranty  Testride Technical Data  Custom Gallery

RACING GUN

The ION G19 is a purebred downhill bike. The GEOLUTION geometry combined with the best suspension components will enable you to reduce your competition times.

#GEOLUTION

“We don’t care about trends! All that matters is lap times, driving pleasure, safety and the physical facts.” This quote is our approach to the development of new mountain bikes. This mission statement has made us one of the most innovative bicycle companies in terms of chassis performance, steering dynamics and geometry.

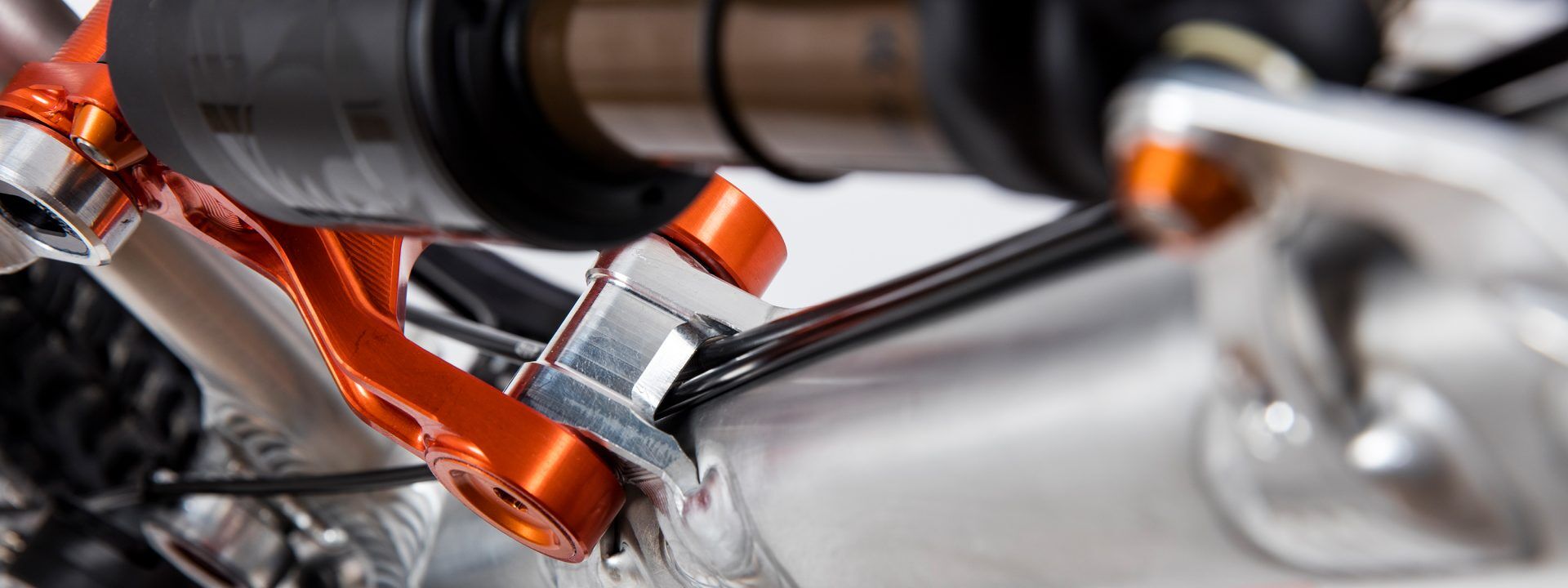

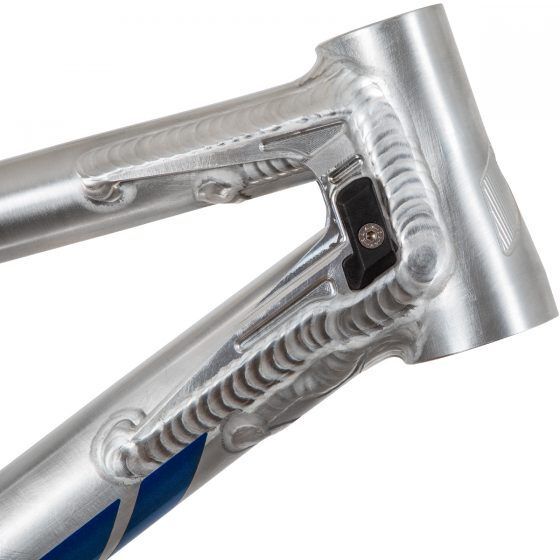

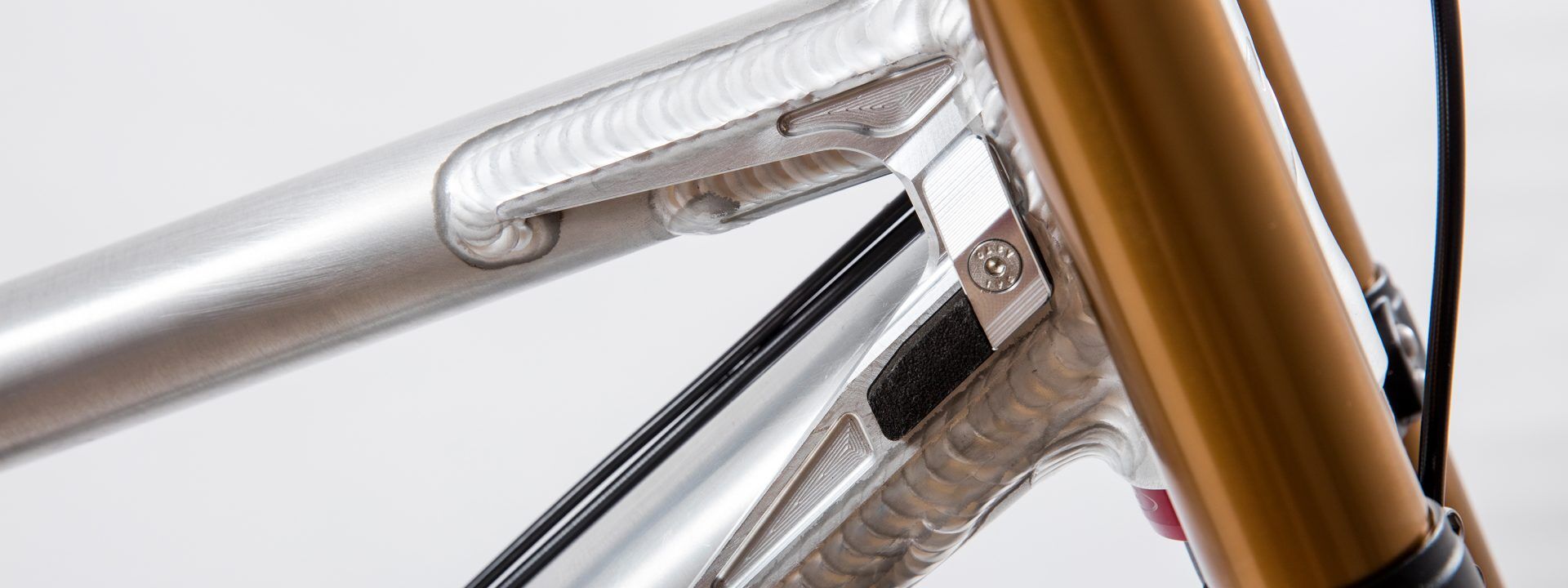

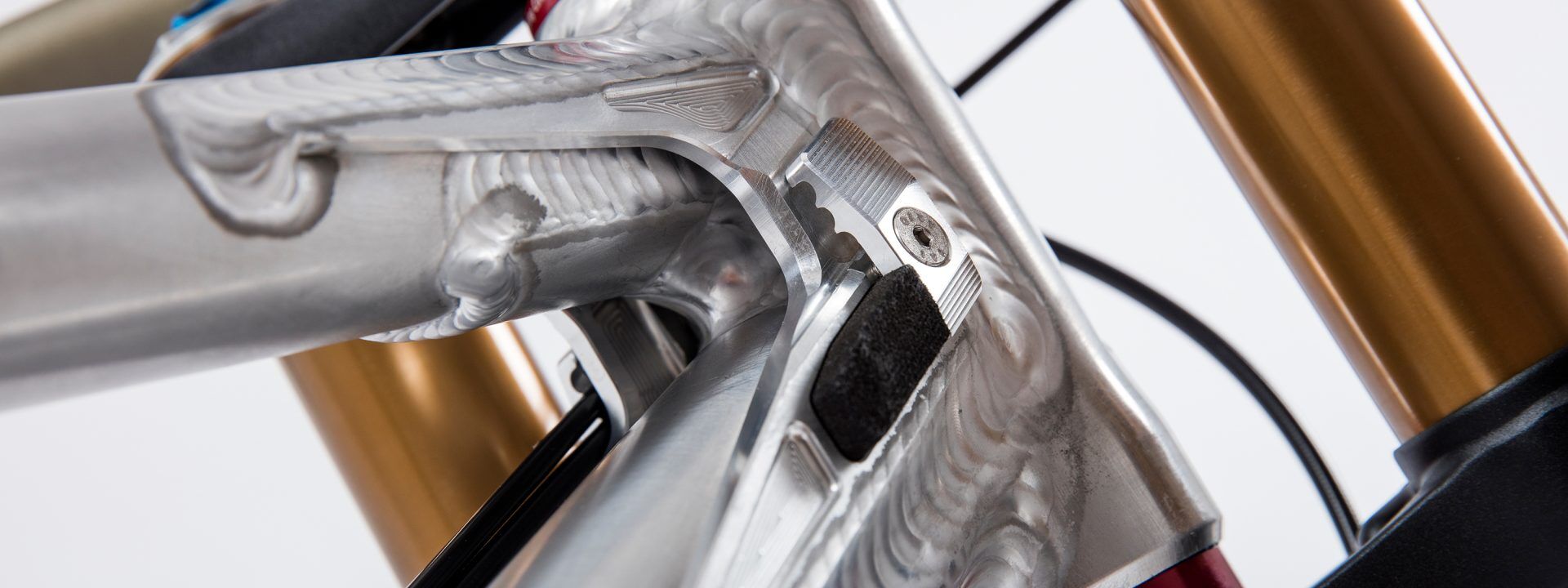

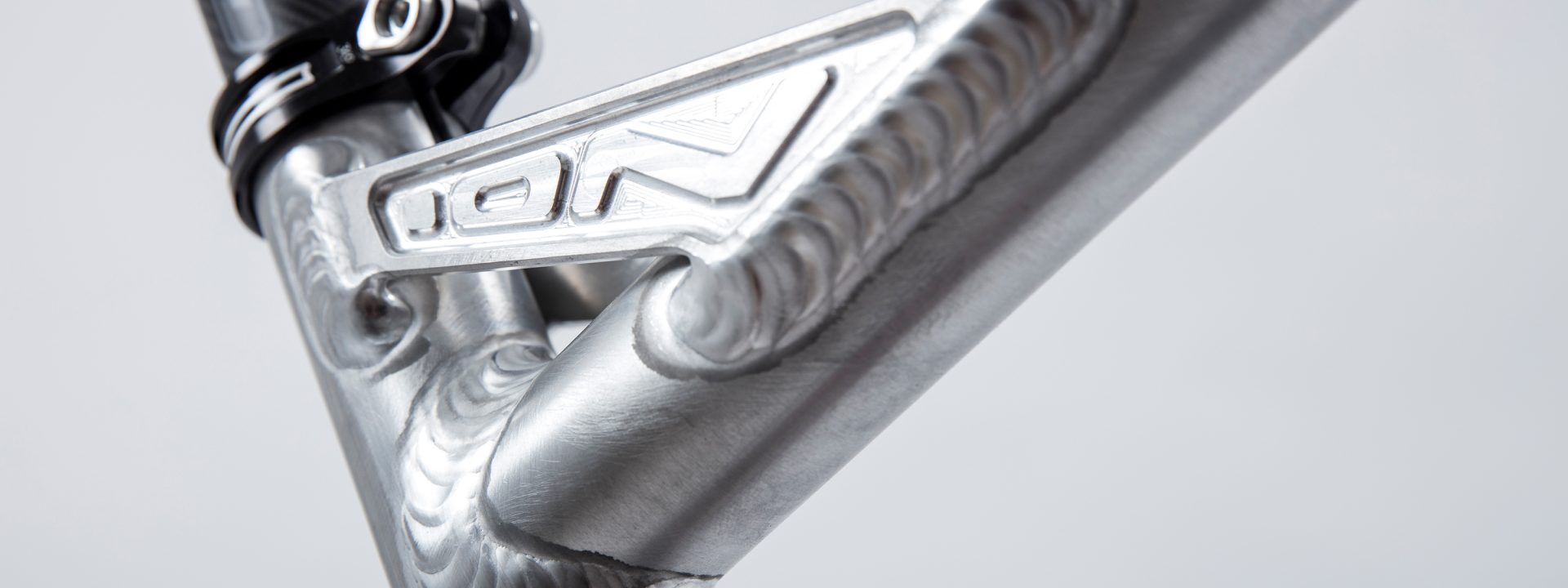

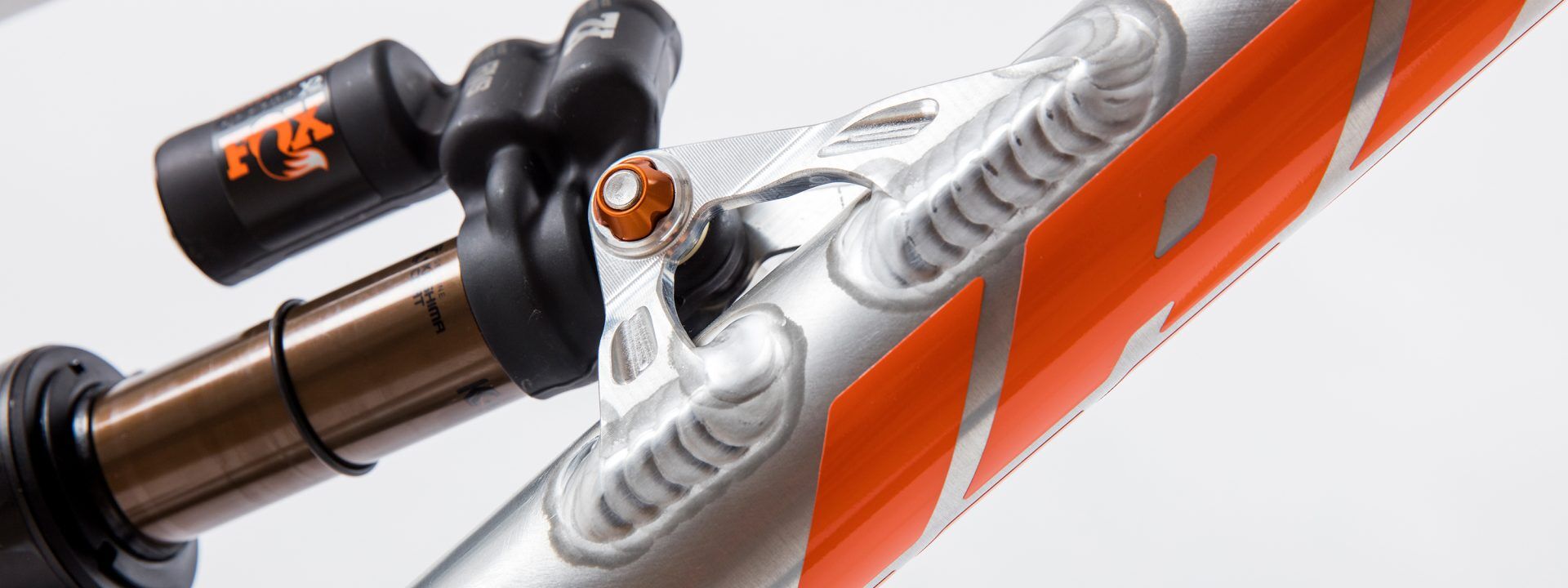

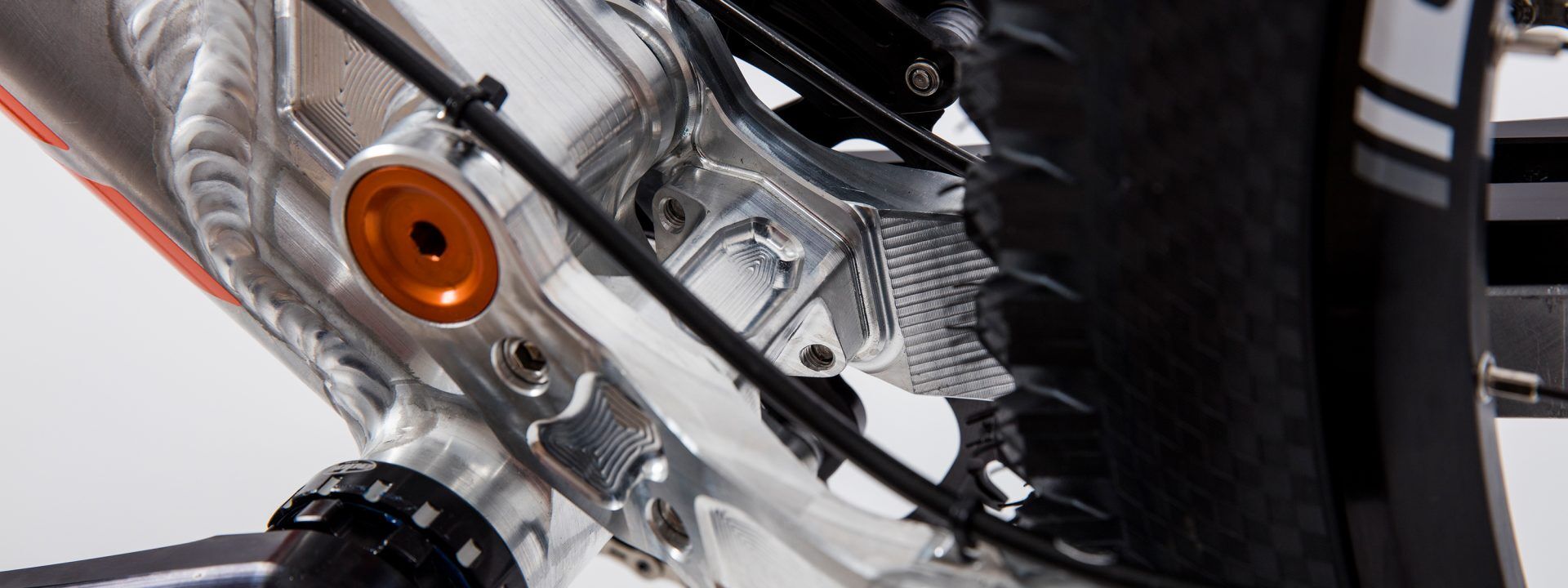

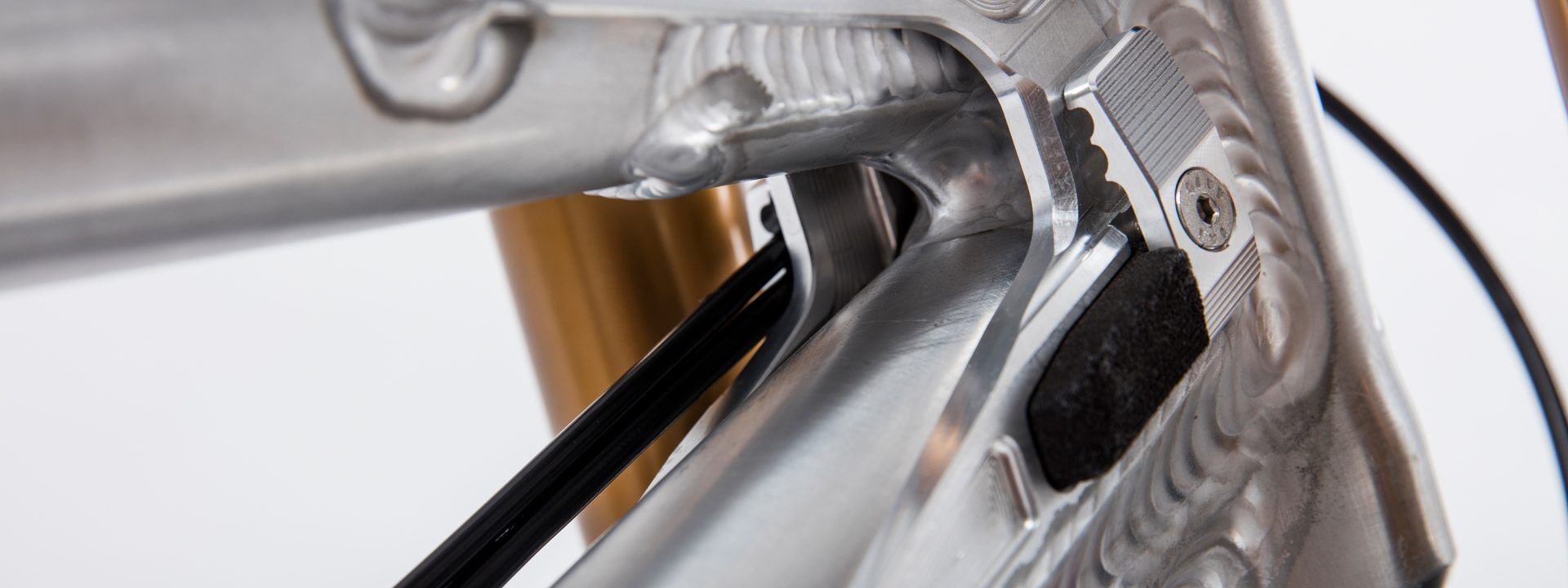

WELDING TECHNOLOGY

A NICOLAI IS ALWAYS RECOGNIZABLE BY ITS WELDS

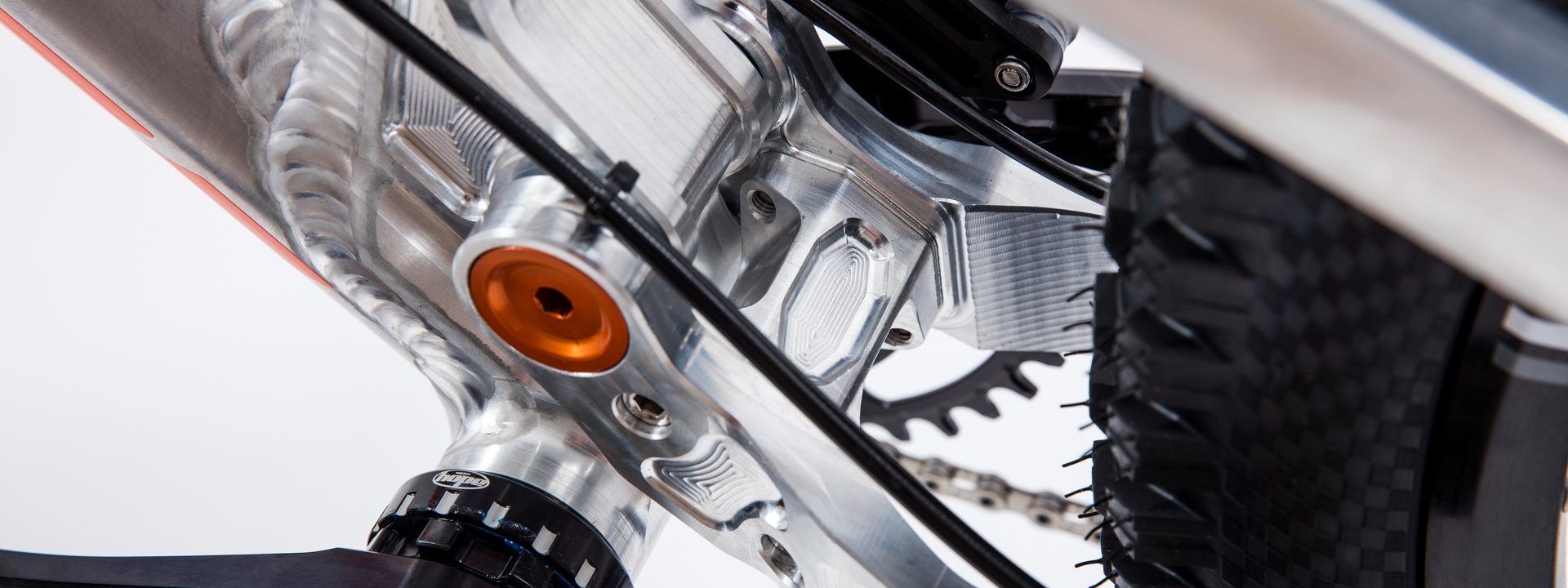

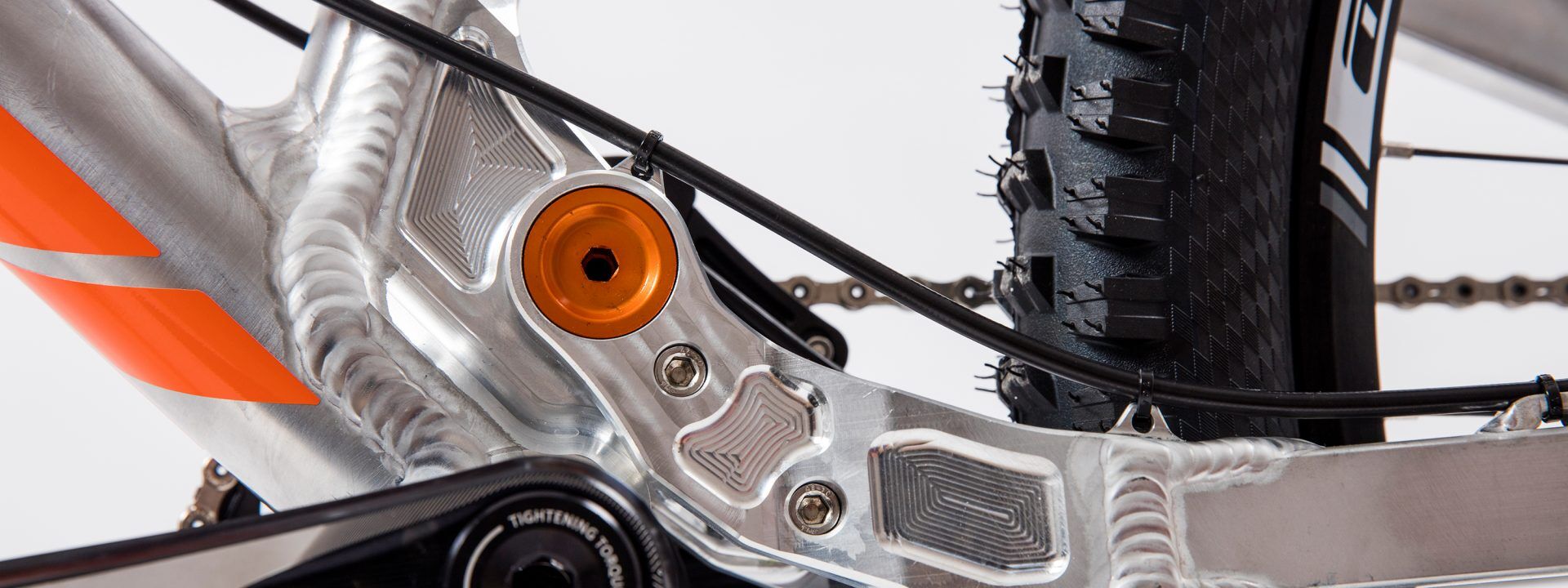

We design a unique jig for every model and frame size. The tubes and machined components are turned and milled as necessary and then mounted in the jig, fitting perfectly together. Then, these parts are tacked together by spot welding. The frame is then welded in several passes by TIG (tungsten inert gas) to reduce distortion. By reducing the distortion as much as possible it improves the alignment of the frame. Our flat, fish-scale welds are time-consuming but ensure that the material is properly fused, improving strength.

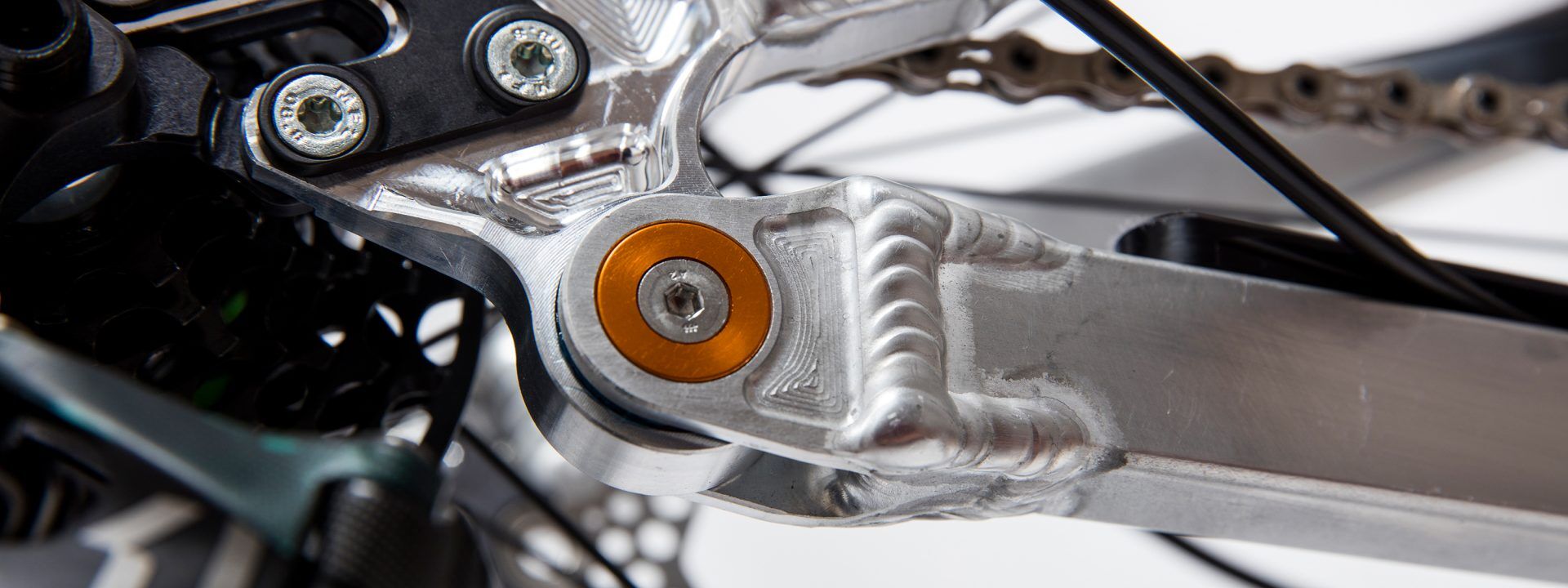

ANGULAR CONTACT BEARINGS

4 WAY SEALED

The rear triangle of a full suspension bike is not a statically rigid component and is exposed to extreme loads during driving. Critical points are the ball bearings, which ensure low breakaway torque and optimum response of the chassis. In order to extend the maintenance intervals of the frame, Nicolai products rely exclusively on full complement, double-sealed ball bearings.

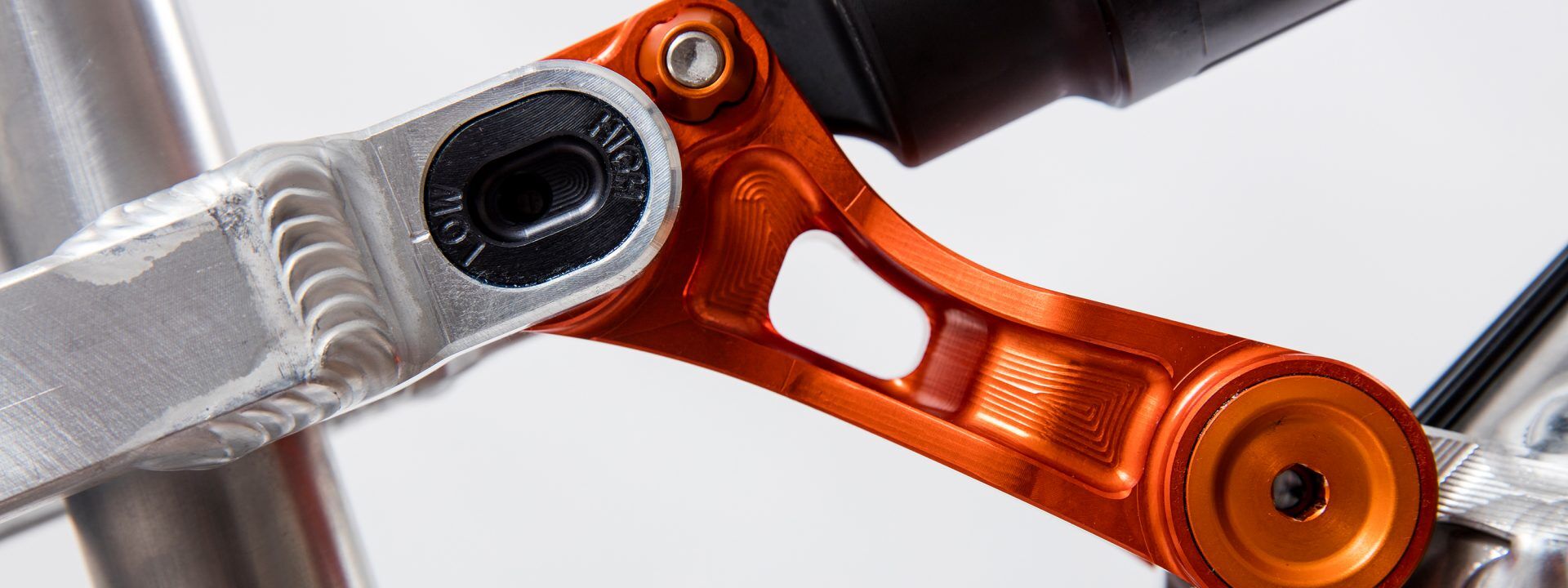

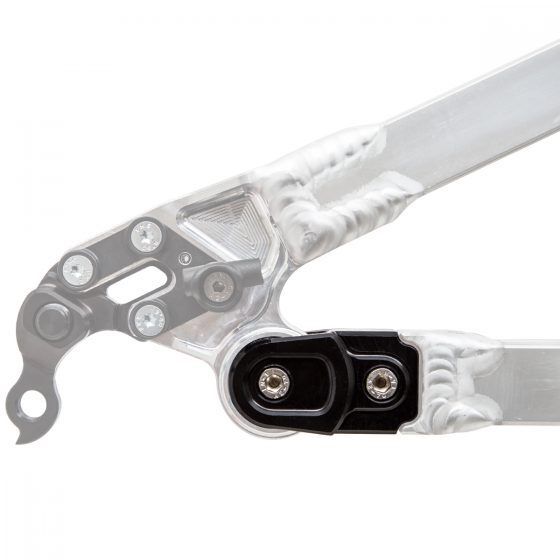

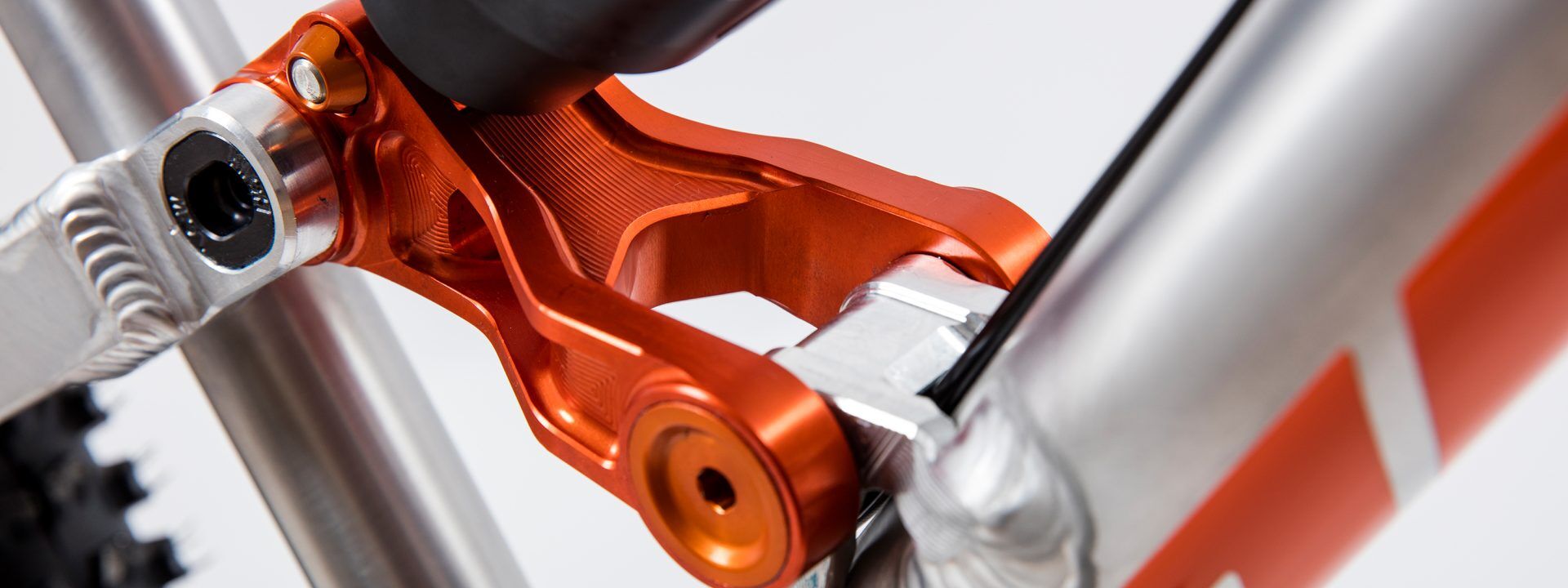

SWING MUTATOR

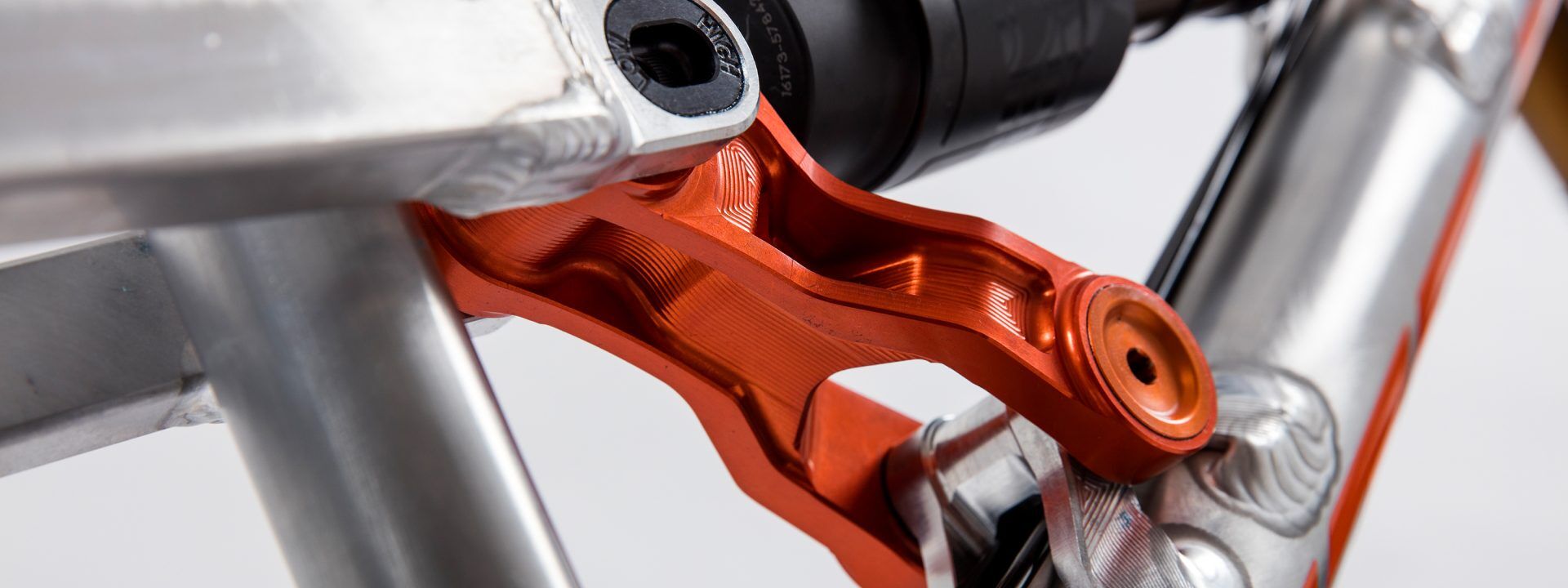

The MUTATOR is a newly developed component on the rear swing arm, which combines many functions in a single component:

The mutators are available in different lengths (33, 41 und 47mm). In this way, only by replacing a mutator can the length of the swingarm “grow with” the frame height according to the GEOMETRON concept.

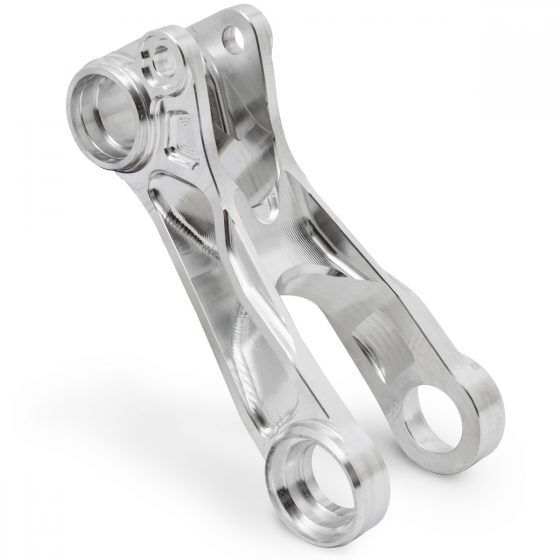

TOPOLOGY OPTIMIZED STRUCTURE

A bicycle frame and its components are exposed to extreme forces during use. In order to develop a durable, robust but also lightweight bicycle frame, all components are designed at NICOLAI GmbH using topology optimization.

7020-T6 Aluminium

ALUMINIUM IS NOT ALUMINIUM

We at Nicolai exclusively use the alloy 7020-T6 (AlZn4,5Mg1) for our frames. Compared to our competitors, who mostly use aluminium 6061-T6, this grade has much better strength values.

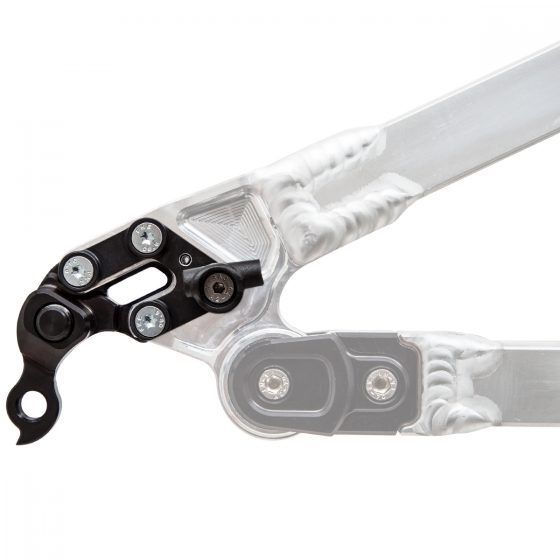

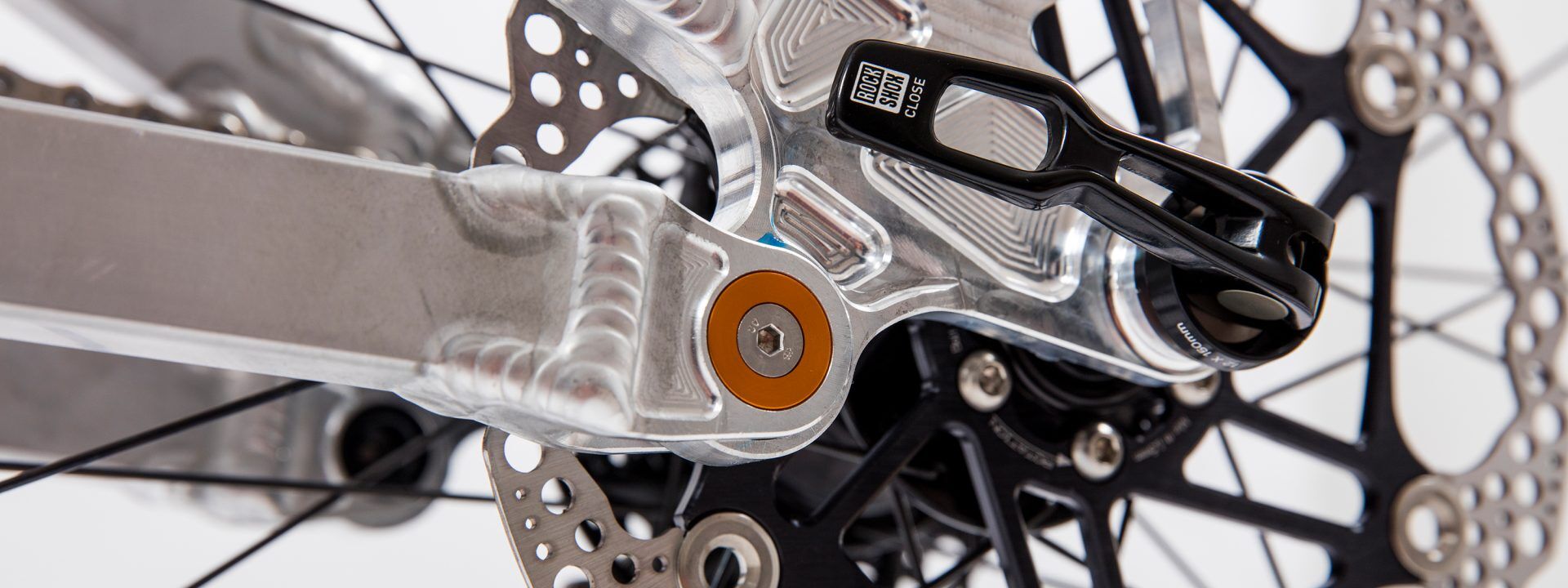

rado

Rear Aligning Dropout

So that you can hit every lane on the trail, we mount a form-fit sliding, exchangeable dropout for track and camber adjustment on all frames. Due to the differently milled, right dropouts for adjusting the lintel, the rear only needs to be slightly readjusted after installation. This takes the strain off the material. The respective lintel height is milled into the RADO with the digits 0, 1, 2 or -1 and -2. After the toe and camber have been set, the RADO is fixed ex works with a pin. This makes the original setting easily reproducible during replacement. This is the only way we can guarantee that NICOLAI products work precisely on the track.

COLOR VARIETY

Extralove

With a NICOLAI frame, you decide the design. Every Nicolai frame can be produced in any colour according to your preferences. Choose from different frame colours, anodised colours for reversing levers and pull holders as well as frame decor to add your individual touch to the frame.

TAILOR MADE

WE MANUFACTURE YOUR CUSTOM-MADE FRAME

You can order, pay for and pick up your tailor made frame directly from us or from your Nicolai dealer. For technical details, please contact us directly. First we need to know why you want to ride a custom-made frame. Most of the reasons lie in the past.

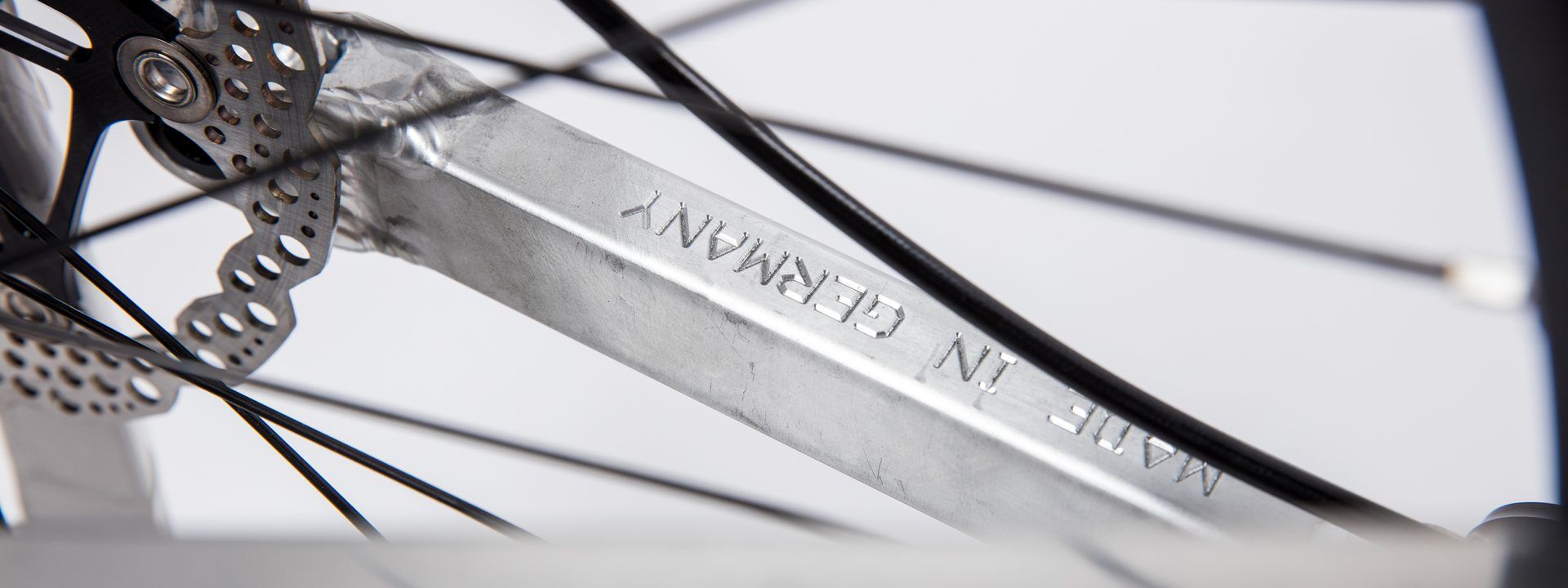

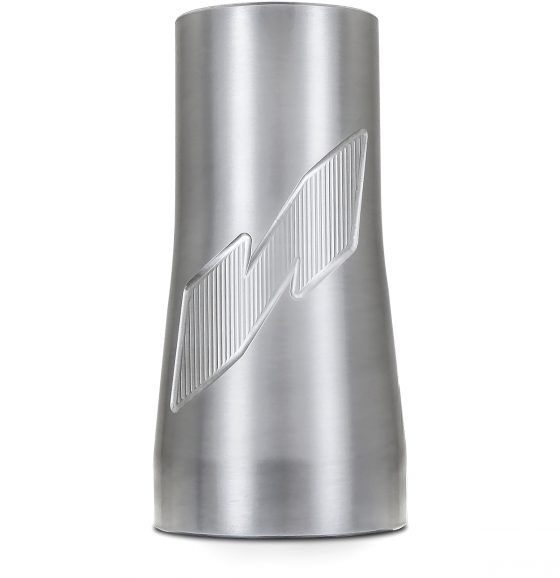

MANUFACTURING QUALITY

Made in Germany

The manufacturing quality itself is not yet an added value for a customer. The following two added values “durability & precise driving characteristics”result from production quality. Only if the welds are welded deep into the root and have no notches, a bike frame can withstand the impacts from the ground for many years without breaking. Precise riding characteristics are achieved when the rear wheel is precisely straight to the front wheel and even a layman notices that an oblique bike rides strangely (but usually he thinks it’s because of his riding ability).

10 YEARS SPARE PARTS AVAILABILITY

If after a few years of hard work a bearing on a Nicolai frame needs to be replaced, a RADO needs to be replaced due to a fall or a frame needs a new coating, the NICOLAI service staff is the right contact. Since we at NICOLAI manufacture all small parts on our machines, we can also produce spare parts for older models if required. We therefore guarantee spare parts availability of at least 10 years for all Nicolai products.

BIKE CONFIGURATOR

You can now configure the G19 as a complete bike. Components from HOPE, FOX, SRAM, MAGURA, RESET, CONTINENTAL, SQLAB, RENTHAL are available.

CONFIGURE NOW
